Concrete Sink Mold SDP-8 Ramp Slot Drain (24"x15.75"x6")

Sale price$294.09
Fast Ship: Usually takes 1-2 business days to ship out.
Ships from Utah
(Click for average Ground delivery map )
Ships via FedEx/UPS only

Concrete Sink Mold SDP-8 Ramp (24"x15.75"x6"):

  • Length: 24" (Across)
  • Width: 15 3/4" (Front-To-Back)
  • Depth: 6" (At Drain)
Plexiglas Slot Drain Piece: 23" Long, 1 1/2" Wide, 1/4" Thick.
Sides have at least a 5° slope to ensure Mold removal from concrete.

    Concrete Sink Mold SDP-8 Ramp (24"x15.75"x6"):

    • Our SDP (Super Durable Polyurethane) Line of Sink Molds are made from the highest grade Polyurethane Rubber.  Won't chip and crack like fiberglass, and much easier to get out of concrete after casting. A lifetime of reusability.

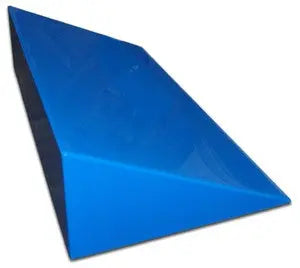

    • The 24" Ramp Sink Mold is a wedge shaped Mold that uses a slot to drain the water instead of the 'traditional' round drain.
    • Slot Drain Style drain. Plexiglas piece included with Mold to use for creating the slot drain.
    • All drain hardware hidden from sight. Drain kit assemblies are sold separately, available in Stainless Steel or Black ABS Plastic (The 24" Drain Pan size fit the SPD-8 24" Ramp Sink Mold).

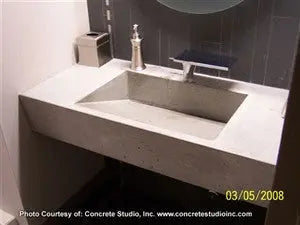

    • Create a seamless integral concrete sink and counter top, or form around to create a vessel sink.
      • Each Mold comes with one reusable Plexiglas Slot Drain knockout, with angled ends for easier removal from concrete.
      • All our Molds have Lifetime Guarantee against defect. This Guarantee does not cover misuse of the Molds (Dropping the Mold, Prying the Mold out using a screwdriver, Driving onto it with a truck tire... etc.).
      • Expressions LTD will not be held liable for any damage, misuse, or collateral damages resulting from use of any of our products. If there is a flaw or defect with a product, we will fix or replace the product.

      Mold Use:

      Mold Setup:

      • When planning, remember to add 1" - 2" to each side of the sink to your measurements, to account for the concrete thickness on the sides of the finished sink.
      • Apply 2-3 coats of a Mold Release Wax to the mold, lightly buffing between coats once it hazes.
      • Apply small amounts of silicone to the Mold's bottom, and set in place in your form. Allow silicone to dry.
      • Screws can be used to secure the Mold if necessary. Using screws of the appropriate length, screw through the bottom of the form, up into the bottom of the Sink Mold.
      • Run a smooth silicone bead around perimeter of the Sink Mold, where it meets the form base (using a tool such as our Caulking Ball Tool makes this process very clean and easy).
      • Apply a thin coat of Rubber Safe Form Release to the Mold just prior to casting the concrete piece.

      Concrete Casting:

      • Various methods can be used to cast the concrete piece. View our Concrete Recipe section for tips on concrete mixes.
        • GFRC: Cement and fiberglass is sprayed on and hand packed into the form and around the Mold.
        • Wetcast: Oatmeal consistency concrete is placed in form and around the Mold and vibrated. A simple box should be built around the Sink Mold, to contain the concrete during this process.
        • Hand Packed: A drier concrete mix is hand packed into the form and around the Mold. A second step after de-molding will fill the voids with cement slurry, usually of a different coloring.
      • Any voids in the finished concrete can be filled using a Cement Slurry.

      Mold Removal:

      • If the steps above were followed for the Mold Setup, then most Molds will usually pull out of the concrete with little effort.
      • If the mold is difficult to remove, try:
        • Compressed air shot around the Mold rim will break the suction holding the Mold in the concrete.
        • Most Molds can be pushed out of the concrete by removing the drain piece, and pushing the Mold out through the drain slot.

      Clean-up and Care of The Concrete Sink Mold SDP-8 Ramp (24"x15.75"x6"):

      • Clean Mold with a sponge after each use. Any dried cement residue can be removed with a scotch-brite pad (as outlined above in the Mold Setup section. A light muriatic acid wash (20:1, 20 parts water to 1 part muriatic acid) can also remove cement scale.
      • Waxing and buffing the Mold after cleaning it use is recommended to protect the Mold until its next use.

        Customer Reviews

        Based on 1 review
        Excellent quality. Not blue though!

        Update 1/5/16: gelcoat of mold reviewed below started blistering. Contacted Expressions and they replaced it and paid for return shipping, no questions asked.

        This is my 3rd sink mold I've purchased here. Overall the finish and quality is excellent. A couple issues:
        - this mold came white! Of course my first project with it was white sprayed gfrc. I assumed all the molds came in blue from the photos and the term Dura-Blu in the description. Don't ASSUME!
        - this one had a pretty deep radial scuff mark on it, but it buffed out by wet sanding from 180 to 1000 grit. All other molds were perfect.
