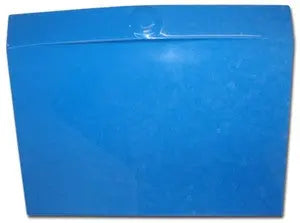

Concrete Sink Mold SDP-29 Traditional Ramp 20.25"x14.75"x6"
- Length: 20 1/4" (Across)
- Width: 14 3/4" (Front-To-Back)
- Depth*: 6" (At Drain)
- PLEASE NOTE: @ Feb 1 2020 we began making this SDP-29 Mold in a shallower version. The old style had about a 3/4" front lip to the mold. We now make this mold with a 1/8" front lip, so the 'ramp' part will start almost at the countertop level If you have one of these older style molds already, and need another identical mold with the deeper version, please select the 3/4" Front Lip Depth from the drop down menu on this product to order and allow us 1-2 days to make the mold.
- Sides have at least a 5° slope to ensure Mold removal from concrete.
Concrete Sink Mold SDP-29 Traditional Ramp 20.25"x14.75"x6":
- Our SDP (Super Durable Polyurethane) Line of Sink Molds are made from the highest grade Polyurethane Rubber. Won't chip and crack like fiberglass, and much easier to get out of concrete after casting. A lifetime of reusability.
- The 'Traditional Ramp' Sink Mold for concrete sink fabrication.
- A wedge ramp style shape Sink Mold with a secondary angle at the bottom of the wedge that slopes inwards to the drain.
- Small style drain for bathroom lavatory size drains. Each rubber Sink Mold comes with a reusable Rubber Drain Knockouts (1.5" size) to be used for the drain hole (simply silicone the rubber plug onto the drain area of the mold).
- IMPORTANT NOTE: Regarding the metal drain hardware that goes into a finished concrete sink- not all drain stoppers are a good fit! Since the popularity of online ordering, plumbing code is basically out the window now. With Amazon, people can order drains in all sorts of random sizes, many which don't fit in the recessed flange area of a sink. For most concrete molds with a flange built into the mold itself, it's best to use a drain hardware piece that has a max diameter on the metal flange (top part that you see in the finished sink) of 2.25". The 'body' of the drain that fits down the hole should be under 1.5" (ideally around 1.4" to fit easily). We routinely purchase and use these Drain Stoppers from Amazon (sold here).
- Create a seamless integral concrete sink and counter top, or form around to create a vessel sink.
- All our molds have Lifetime Guarantee against defect. This Guarantee does not cover misuse of the Molds (Dropping the Mold, Prying the Mold out using a screwdriver, Driving onto it with a truck tire... etc.).
- Expressions LTD will not be held liable for any damage, misuse, or collateral damages resulting from use of any of our products. If there is a flaw or defect with a product, we will fix or replace the product.
- Watch videos of Mold Setup, Casting, and De-Molding/Removal on our YouTube Video Page.
- A basic Sink Mold Instruction sheet is available here.
- Rubber molds may have a little oil on them when you receive them, from our manufacturing process. Clean off any oil with a mild cleaner and paper towels. Once clean, apply Mold Release Wax. Lots of coats of wax will help get mold out easier! You may want to lightly sand the mold by hand with 200 or 400 grit sandpaper, to give it a little more surface to 'hold' the wax: To wax the mold, apply 5 coats of Mold Release Wax to the mold, lightly buffing between coats once it hazes.
- Apply small amounts of silicone to the Mold's bottom, and set in place in your form. Allow silicone to dry.
- Screws can be used to secure the Mold if necessary. Using screws of the appropriate length, screw through the bottom of the form, up into the bottom of the Sink Mold.
- Run a smooth silicone bead around perimeter of the Sink Mold, where it meets the form base (using a tool such as our Caulking Ball Tool makes this process very clean and easy).
- Apply a thin coat of Rubber Safe Form Release to the Mold just prior to casting the concrete piece.
- Various methods can be used to cast the concrete piece. View our Concrete Recipe section for tips on concrete mixes.
- GFRC: Cement and fiberglass is sprayed on and hand packed into the form and around the Mold.
- Wetcast: Oatmeal consistency concrete is placed in form and around the Mold and vibrated. A simple box should be built around the Sink Mold, to contain the concrete during this process.
- Hand Packed: A drier concrete mix is hand packed into the form and around the Mold. A second step after de-molding will fill the voids with cement slurry, usually of a different coloring.
- Any voids in the finished concrete can be filled using a Cement Slurry.
- If the steps above were followed for the Mold Setup, then most Molds will usually pull out of the concrete with little effort.
- If the mold is difficult to remove, try:
- Compressed air shot around the Mold rim will break the suction holding the Mold in the concrete.
- Most Molds can be pushed out of the concrete by removing the drain piece, and pushing the Mold out through the drain slot.
- Rubber type molds are usually stuck in concrete like an air-suction. Sliding a very thin plastic putty knife between concrete and mold is usually all it takes to release the air suction on a very stuck mold.
Clean-up and Care Concrete Sink Mold SDP-29 Traditional Ramp 20.25"x14.75"x6":
- Clean Mold with a sponge after each use. Any dried cement residue can be removed with a scotch-brite pad (as outlined above in the Mold Setup section. A light muriatic acid wash (20:1, 20 parts water to 1 part muriatic acid) can also remove cement scale.
- Waxing and buffing the Mold after cleaning it use is recommended to protect the Mold until its next use.
